Flow of Program - Flowcharts and Pseudocode

Flow Chart → Visualization of out thought process of Algorithm and represent them diagrammatically is called flow chart.

  • Start / Stop - An ovel shape indicate the starting and ending points of the flow chart.
  • Input / Output - A parallelogram is used to represent input and output in flow chart.
  • Processing - A rectangle is used to represent process such as mathematical computation or variable assignment.
  • Condition - A diamond shape is used to represent conditional statement which results in true or false (Yes or No)
  • Flow direction of program - An arrow shape is ued to represent flow of the program.

Example 1 → Take a name and output Hellow name.

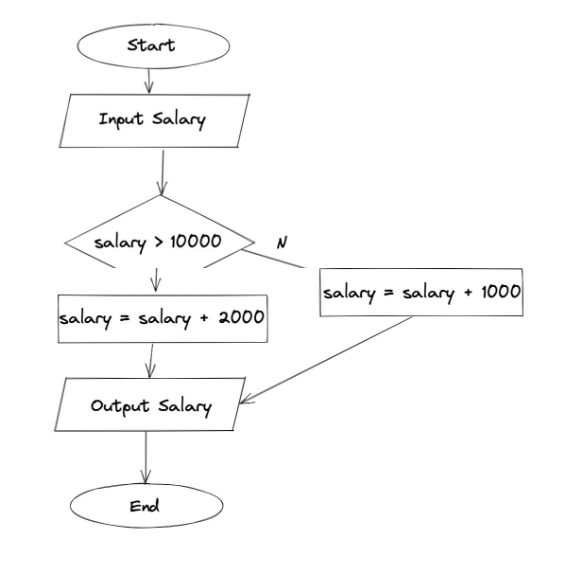

Example 2 → Take input of a salary. If the salary is greater than 10,000 add bonus 2000, otherwise add bonus as 1000.

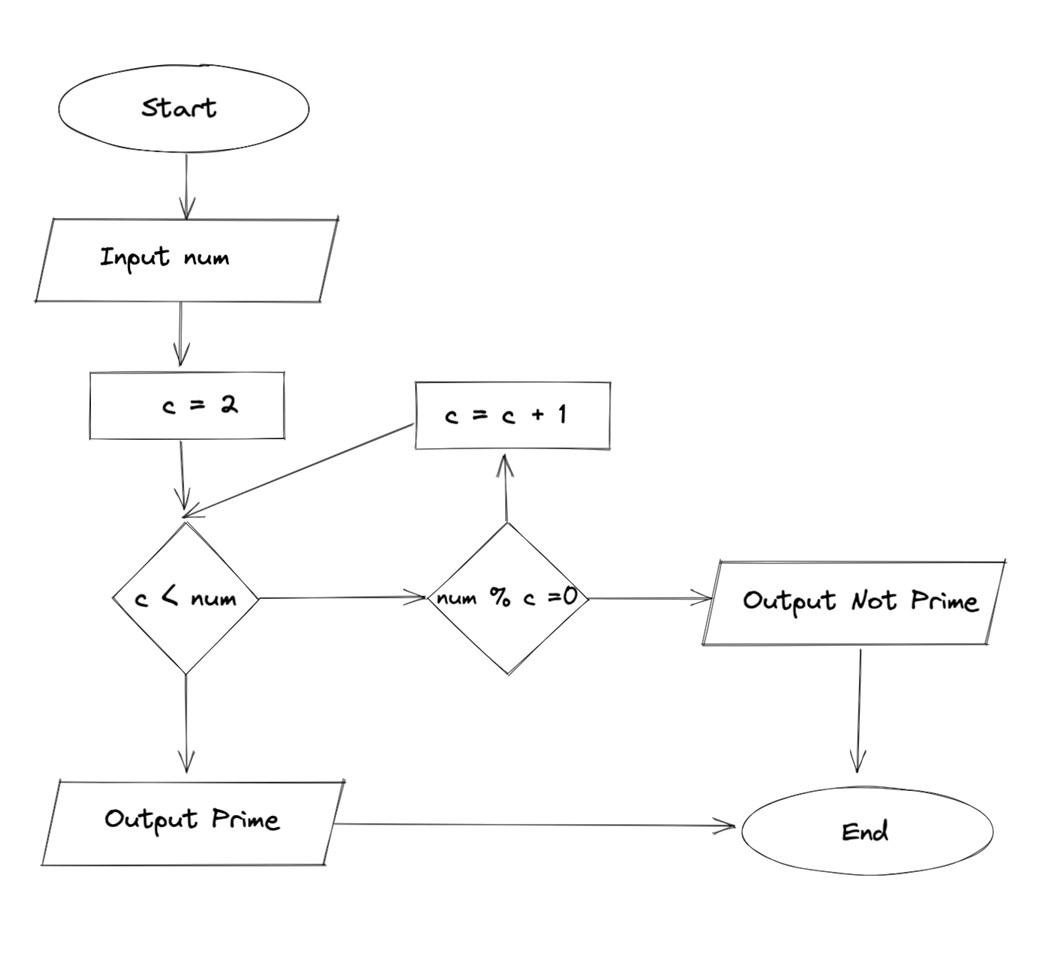

Example 3 → Input a number and print whether it is prime or not.

Pseudocode

It is like a rough code which represents how the algorithm of a program work.

Pseudocode of Example 2
start
Input salary
if salary > 10000 :
     salary = salary + 2000
else :
     salary = salary+1000
output salary
exit

Pseudocode of Example 3
start
input num
if num ≤ 1
    print "neither prime nor composite"
c = 2
while c < num
    if num % c = 0
        output "not prime"
        exit
    c = c + 1
end while
output "prime"
exit
