Animation and GKS Standards

Unit Structure


Computer Graphics: Animation and GKS Standards
|
├── 1. Animation
│   ├── Introduction to Animation
│   ├── Principles of Animation
│   ├── Types of Animation
│   └── Types of Animation Systems
│       ├── Scripting Systems
│       ├── Procedural Systems
│       ├── Representational Systems
│       └── Stochastic Systems
│
└── 2. GKS (Graphical Kernel System) Standards
    ├── GKS Primitives
    │   ├── Polyline
    │   ├── Polymarker
    │   ├── Fill Area
    │   └── Text
    └── GKS Workstation and Metafiles

Computer Graphics isn’t just about drawing lines and shapes — it's also about bringing visuals to life and standardizing how graphics are created across systems. In this unit, we focus on two exciting areas: Animation and GKS Standards.
We begin with Animation, where you’ll explore the basics of how motion is created on screen. You’ll learn about the core principles of animation (like timing and squash & stretch), the different types of animations used in games, movies, and interfaces, and finally, the various animation systems — including scripting-based, procedural, representational, and stochastic systems, each with its own way of controlling how things move and behave.
Next, we dive into the Graphical Kernel System (GKS) — one of the first standards for computer graphics. You’ll understand how GKS defines basic building blocks called primitives, like polylines, polymarkers, filled areas, and text. We’ll also look at how GKS handles workstations and metafiles, which allow graphics to be rendered across different platforms in a consistent way.

ANIMATION

Animation is a process of displaying still images in a rapid sequence to create the illusion of movement. In computer graphics, it involves programming or designing movement by manipulating images using various techniques.
A person who creates animations is called animator. He use various computer technologies to capture the pictures and then to animate these in the desired sequence.

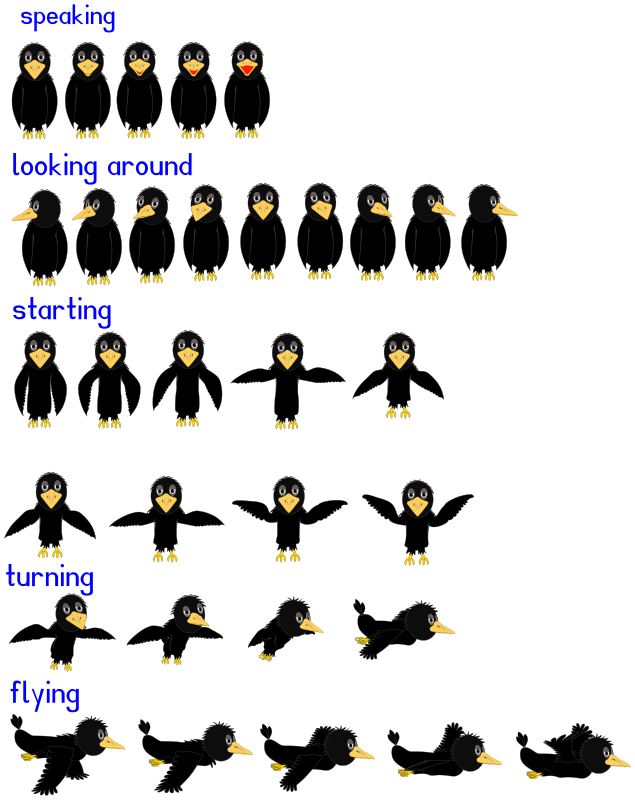

Example Of Animation

Animation includes all the visual changes on the screen of display devices these are: change of shape, size, color, structure, angle.

Application of animation

Education and Training: Animation is used in school, colleges and training centers for education purpose. Flight simulators for aircraft are also animation based.
Entertainment: Animation methods are now commonly used in making motion pictures, music videos and television shows, etc.
Computer Aided Design (CAD): One of the best applications of computer animation is Computer Aided Design and is generally referred to as CAD. One of the earlier applications of CAD was automobile designing. But now almost all types of designing are done by using CAD application, and without animation, all these work can't be possible.
Advertising: This is one of the significant applications of computer animation. The most important advantage of an animated advertisement is that it takes very less space and capture people attention.
Presentation: Animated Presentation is the most effective way to represent an idea. It is used to describe financial, statistical, mathematical, scientific & economic data.

Principles of Animation

Animation isn’t just about moving drawings — it’s about bringing characters and actions to life in a way that feels real and engaging. To do that well, animators follow a set of tried-and-true principles that make movements look more natural and expressive. Whether you're making a simple cartoon or a complex 3D movie, these principles help give your animations personality, clarity, and flow. Let’s break them down in a simple way:

Principle	Description
Squash and Stretch	Makes things look more alive by showing how they stretch or squash — like a ball flattening when it hits the ground and stretching as it bounces back up.
Anticipation	Prepares the viewer for what’s coming. For example, a character bends their knees before jumping — it helps the action feel believable.
Staging	Helps the audience focus on what’s important in a scene — like using lighting or positioning to draw attention to a key moment or character.
Straight Ahead & Pose to Pose	Two ways to animate: “Straight Ahead” means drawing frame by frame in order — great for spontaneous actions. “Pose to Pose” uses planned key poses first, then fills in the gaps — good for control and timing.
Follow Through & Overlapping Action	Things don’t just stop all at once. If a character runs and stops, their hair or clothes might keep moving — that’s follow through. Overlapping means different parts move at slightly different times.
Slow In and Slow Out	Movements usually start slowly, speed up, then slow down again. This makes things feel smoother and more natural.
Arcs	Most actions in nature don’t move in straight lines — they follow a curved path. Using arcs makes movements feel more realistic.
Secondary Action	Extra little movements that support the main action. Like a character talking while also moving their hands or shifting weight — it adds depth.
Timing	How fast or slow something happens. Quick timing can show energy or excitement; slow timing can show calmness or sadness.
Exaggeration	Pushing actions a bit beyond real life to make them more fun or dramatic. Like stretching a surprised face more than normal to get the emotion across.
Solid Drawing	Even in cartoons, characters should feel like they have weight, depth, and balance — not flat or awkward.
Appeal	Characters should be interesting to look at and easy to connect with. Think of it like the animation version of charisma.

Types of Animation

2D Animation
- The classic flat animation style (just width and height)
- Used in Disney classics, Saturday morning cartoons, and mobile games
- Works by showing slightly different drawings in quick succession
- Popular tools: Adobe Animate (pro), Pencil2D (free)
- Perfect for educational videos and explainer content
3D Animation
- Adds depth (Z-axis) to make objects look real
- Used in Pixar movies, video games, and product visualizations
- Four main steps: modeling → rigging → animating → rendering
- Industry tools: Blender (free), Maya, 3DS Max
- Creates realistic lighting and textures
Stop-Motion Animation
- Real objects moved slightly between photographed frames
- Gives that charming handmade look (think Wallace & Gromit)
- Types include: Claymation (clay), Puppet (dolls), Cut-out (paper)
- Time-consuming but creates unique physical presence
- Often used in indie films and music videos
Motion Graphics
- Animation focused on text and simple shapes
- Common in ads, YouTube intros, and explainer videos
- Great for visualizing data and abstract concepts
- Often combined with voiceovers for maximum clarity
- Tools: After Effects, Premiere Pro, online animators
Keyframe Animation
- Animator sets important poses (keyframes)
- Software fills in the movement between (tweening)
- Saves time while keeping control over movement
- Used for everything from bouncing balls to complex fights
- Fundamental to most digital animation
Path Animation
- Objects follow predefined routes or trajectories
- Perfect for cars driving, birds flying, or camera moves
- Ensures smooth, repeatable motion paths
- Can be combined with other animation types
- Often used in technical animations and simulations
Morphing
- Smooth transformation between shapes/images
- Made famous in 90s movies (Terminator 2 effects)
- Now used for subtle transitions in apps and videos
- Software calculates all the in-between stages
- Creates eye-catching visual metaphors

Types of Animation Systems

Animations can be created in different ways depending on how much control you want and how you want the motion to behave. Some systems let you write detailed instructions, others let the computer handle movements using rules or physics. Let's look at 4 major types — starting from the most manual and moving toward more automated or natural systems.

Scripting Systems
Main idea: You write code to control animations step by step.

In scripting systems, you're basically telling the animation exactly what to do using a programming language. Want a square to bounce or rotate on click? You write the code for that. This method gives you full control and is great for custom effects or repetitive tasks.
- JavaScript is used for animating things on web pages.
- Blender uses Python to automate movements or rigging.
- Maya has its own scripting language called MEL.
- Ideal when you want custom tools or interactive behavior.
Procedural Animation
Main idea: Instead of coding every frame, you define rules or physics, and the system generates motion automatically.

Unlike scripting, where you control every move, procedural animation uses mathematical formulas or physics simulations to create motion. For example, a waving flag, water ripples, or falling leaves — the movement is generated based on behavior, not pre-written steps.
- Used for cloth simulation, hair physics, or water flow.
- Motion adjusts automatically based on environment.
- Great for effects that are dynamic and hard to animate manually.
- Saves memory by calculating movements in real-time.
Representational Animation Systems
Main idea: Animates digital models using bones, joints, and real-world movement logic.

Here, characters are rigged with a digital skeleton (like bones and joints), and you animate those bones to move the character. It’s how most 3D movies and games animate humans, animals, and creatures.
- Uses techniques like inverse kinematics (e.g., keeping feet planted).
- Constraint systems avoid unnatural bending or stretching.
- Focuses on realistic body movement.
- The backbone of 3D character animation in films and games.
Stochastic Animation
Main idea: Adds natural randomness to make animations feel less robotic and more organic.

Stochastic animation doesn't create the main motion, but it adds subtle variations to make things look real. Think of a crowd of people where no two walk the same, or a fire where every flame flickers slightly differently. It relies on randomness — but in a controlled way.
- Used for effects like smoke, dust, fire, or raindrops.
- Creates believable crowd scenes or weather effects.
- Helps avoid repetitive or “too perfect” motion.
- Often used together with procedural or scripted animations.

GKS (Graphical Kernel System) – The Universal Drawing Language

1. What is GKS, and Why Was It Needed?

GKS stands for Graphical Kernel System. It’s not a kernel like the Linux OS kernel — instead, it’s a standard set of core graphics functions (like drawing lines, circles, text, etc.) used to create 2D vector graphics. The term "kernel" here simply means "core" — like a shared toolbox or foundation that all systems could use to handle graphics in the same way.

Back in the 1970s–80s, every computer, monitor, printer, or plotter had its own unique way of drawing graphics. There was no common format or system, which made life difficult for developers. Imagine this:

Every printer speaking a different graphics language
Monitors only understanding commands from their own manufacturer
Programmers having to rewrite drawing code for every new device

This lack of standardization meant you couldn’t build one graphics program and expect it to work everywhere. Everything had to be customized — making graphics programming frustrating and inefficient.

That’s why the International Organization for Standardization (ISO) created GKS. It became the first official standard for 2D computer graphics. The goal was simple:

Define a common set of drawing commands (like draw_line(), fill_area(), etc.)
Allow graphics programs to run on any device or system that supported GKS
Ensure graphics looked the same across all platforms
Help developers learn one unified system instead of dozens

So rather than building separate “kernels” into printers or monitors, device manufacturers and software platforms simply agreed to follow this GKS standard API — making it easier for everyone to speak the same graphics language.

In short, GKS acted like a universal translator for drawing commands. It made graphics portable, consistent, and cross-compatible — just like how HTML standardized web pages or how USB standardized device connections.

2. The GKS Toolbox (Primitives)

GKS gives programmers four basic tools that combine like LEGO to make complex images:

3. Workstation Concept (The Magic Translator)

GKS's clever solution to the device problem:

What it is: A software layer that translates GKS commands to what each device understands
Like: A universal remote that works with all TV brands
Types:
- Output: For screens/printers (showing graphics)
- Input: For mice/keyboards (interacting with graphics)
- Combined: Devices like touchscreens
Practical benefit: Write code once → runs on any supported device

4. Metafiles (The Replay Function)

How GKS saves and shares drawings:

What they are: Digital recordings of drawing commands
Like: Saving a list of "how to draw" instructions rather than a photo
Why better than images:
- Can edit later (change colors, text)
- Smaller file size
- Perfect quality at any zoom level
Practical use: Saving vector graphics (like company logos)

GKS in Today's World

Concept	Modern Equivalent	Where You See It
GKS Primitives	HTML Canvas/SVG shapes	Web charts, mobile apps
Workstation	Graphics drivers	Games adjusting to your GPU
Metafiles	PDF vector graphics	Scalable logos, digital art
